Drive Unit Rotor Ceramic Bearing and Gasket Kit

A complete gasket and bearing kit containing all essential components required for maintenance and repair of electric motors (EM09, EM10) in the Hyundai Ioniq EV 2016–2022.

Specifically developed to address and repair a very common issue affecting these motors, this kit provides a reliable and cost-effective solution for restoring proper performance and long-term durability.

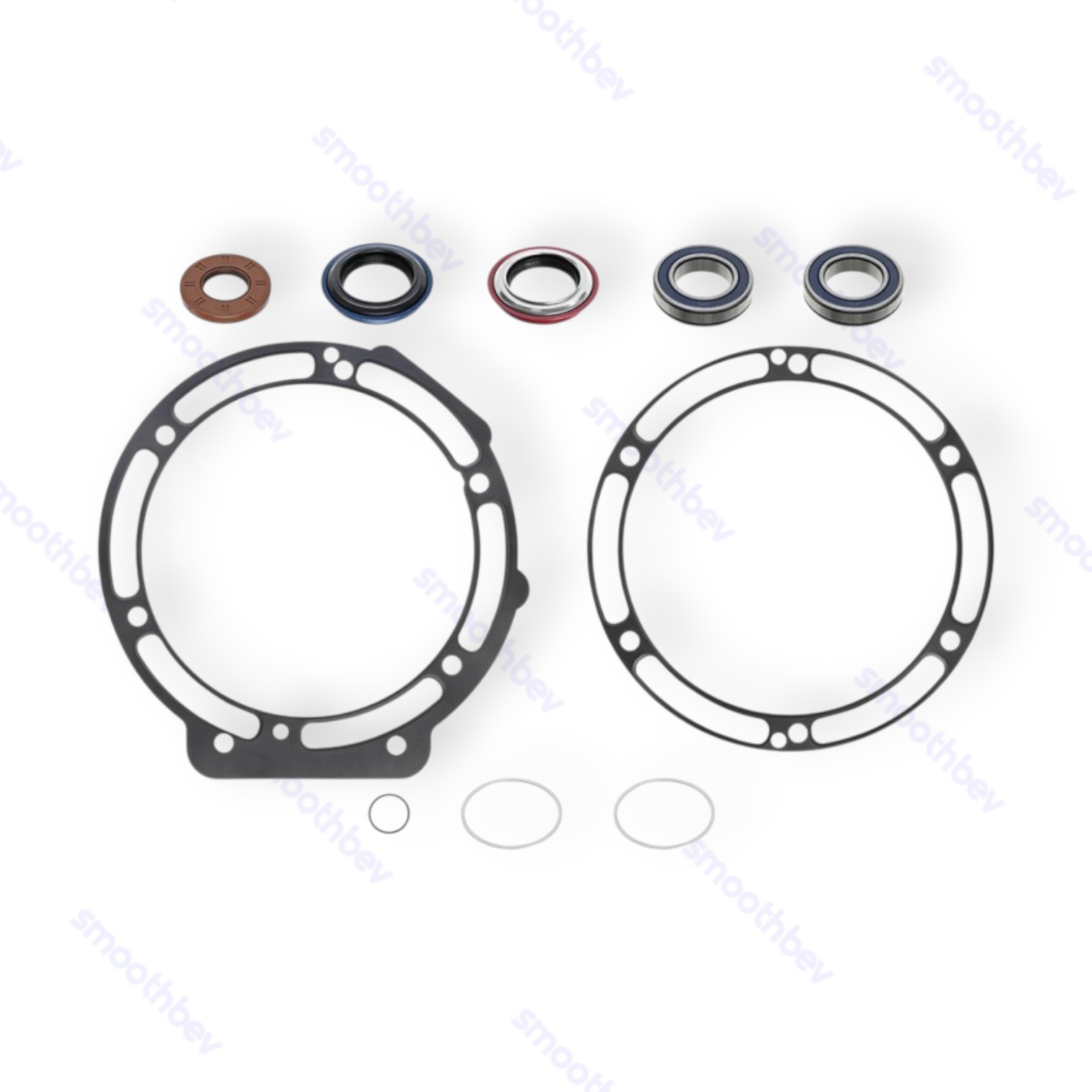

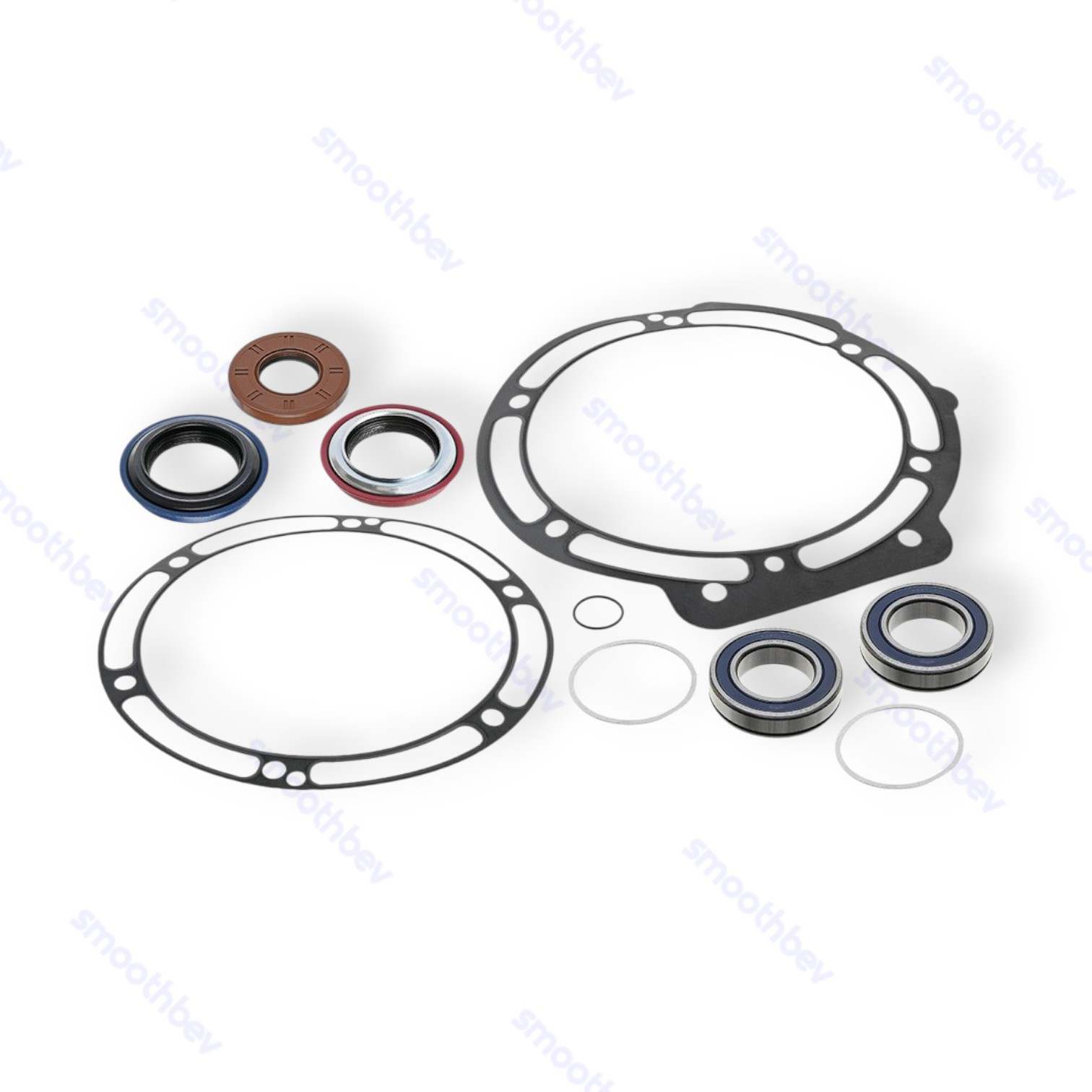

Kit Contents:

• 2x SKF Ceramic Hybrid Rotor Bearings
• 1x Stator Gasket – Phases Side
• 1x Stator Gasket – Primary Shaft Side
• 1x Gear Oil Seal – Left
• 1x Gear Oil Seal – Right
• 1x Primary Shaft Gasket

Product Features

• Premium-Quality Components
  Built with high-quality Ajusa and SKF components to deliver outstanding resistance to heat, wear, and chemical exposure.

• Engineered to Prevent Common Failures
  Specifically designed to address common issues such as insulation breakdown and main rotor bearing damage.

• Hybrid Ceramic Bearing Technology
  These hybrid ceramic ball bearings feature durable bearing steel rings and bearing-grade silicon nitride rolling elements, providing excellent electrical insulation properties.

• Double-Sided Integral Sealing
  Seals on both sides retain lubricant while preventing contaminants from entering, significantly extending bearing service life.

• Protection Against Electrical Damage
  Ceramic rolling elements help prevent damage caused by stray electrical currents.

• Optimized Fit and Long-Term Reliability
  Precision-engineered for superior fitment and dependable, long-lasting performance—even in demanding operating conditions.
